A Livery edit gives a vehicle a new paint scheme. Rageon unfolds the car’s body into a flat template, you paint on it, and the 3D preview shows the result on the car.

​
Create a livery

1

Pick the vehicle

In New edit, select Livery, search for a vehicle, and click it. Vehicles of the project are pinned under In this project (Texturing). Click Continue.
2

Choose the resolution

New livery shows the unfolded body template. Set Resolution to 512, 1024, or 2048; the initial default is 1024, and later liveries reuse your choice during the editor session. The footer shows the size of the sheet, whose shape follows the template. Larger sheets cost texture memory on every instance of the car.

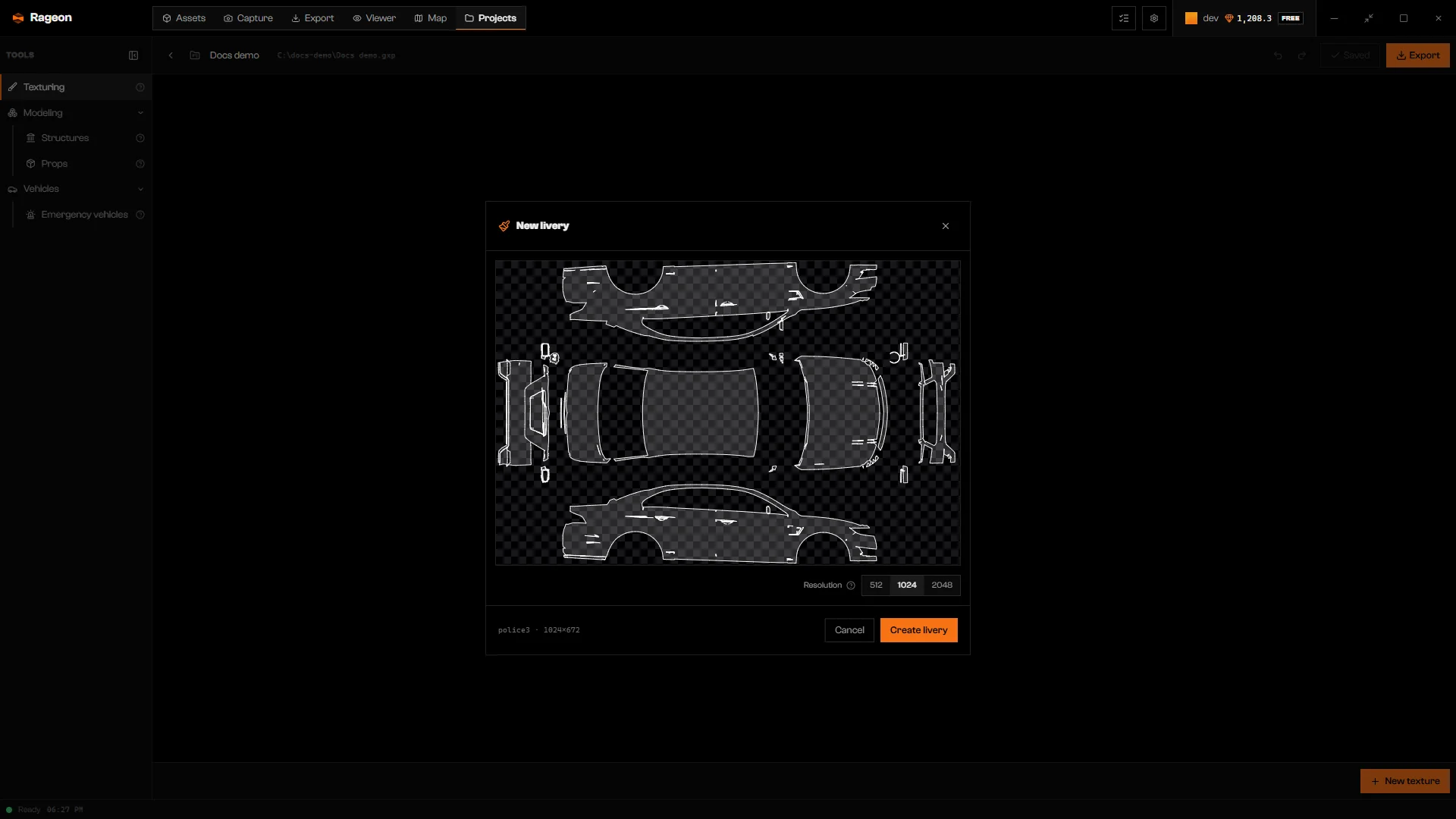

New livery dialog showing the unfolded body template and the Resolution field

The New livery dialog with the unfolded template and Resolution.

3

Click Create livery

The stage opens a transparent sheet with the template as a guide, and the 3D car wears whatever you paint. The edit is named …_livery1, then …_livery2, and so on, and its card is tagged livery.In Viewer, Map mode switches the guide between Hidden and Template. The template boxes are labeled Left side, Right side, Roof and hood, Front, Rear, and Bottom. A car that already has a real livery map shows Author’s map instead.
4

Add layers

Paint with layers and tools: images, brush, text, gradients.

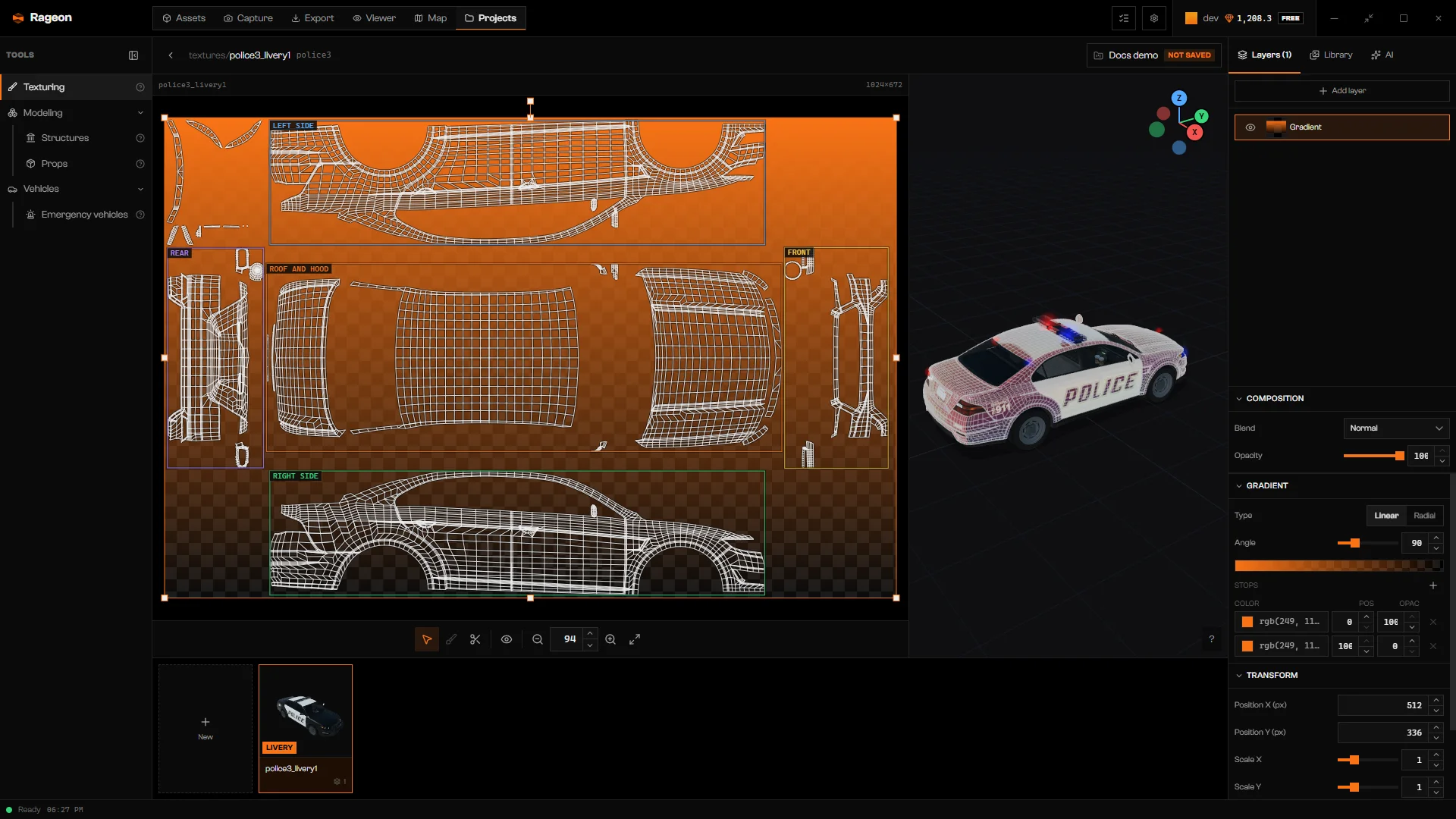

Livery stage with the template boxes, a gradient layer, and the police car in 3D

A livery sheet with a gradient layer and the car in 3D.

To repaint a livery the car already has, use Model texture and set Texture use to Livery instead (Model and global textures).

​
Use it in game

Export adds a livery in vehicle mod slot 48. Call SetVehicleModKit(veh, 0) before SetVehicleMod(veh, 48, n). Factory liveries stay in place; the new liveries follow them. The exported README.txt lists their index range. See Export a project for the resource.

​
Options

​
Troubleshooting

The vehicle has no body Rageon can unfold, so Create livery is disabled. Choose another vehicle.
The template could not be built for this vehicle. Choose another vehicle, or reopen New edit and try again.
The preview has no body to dress. The sheet still exports; check the result in game.
