The Export tab converts many models and interiors in one run. You fill a queue, set the output folder and format, then start it. Each queue has its own items and settings.

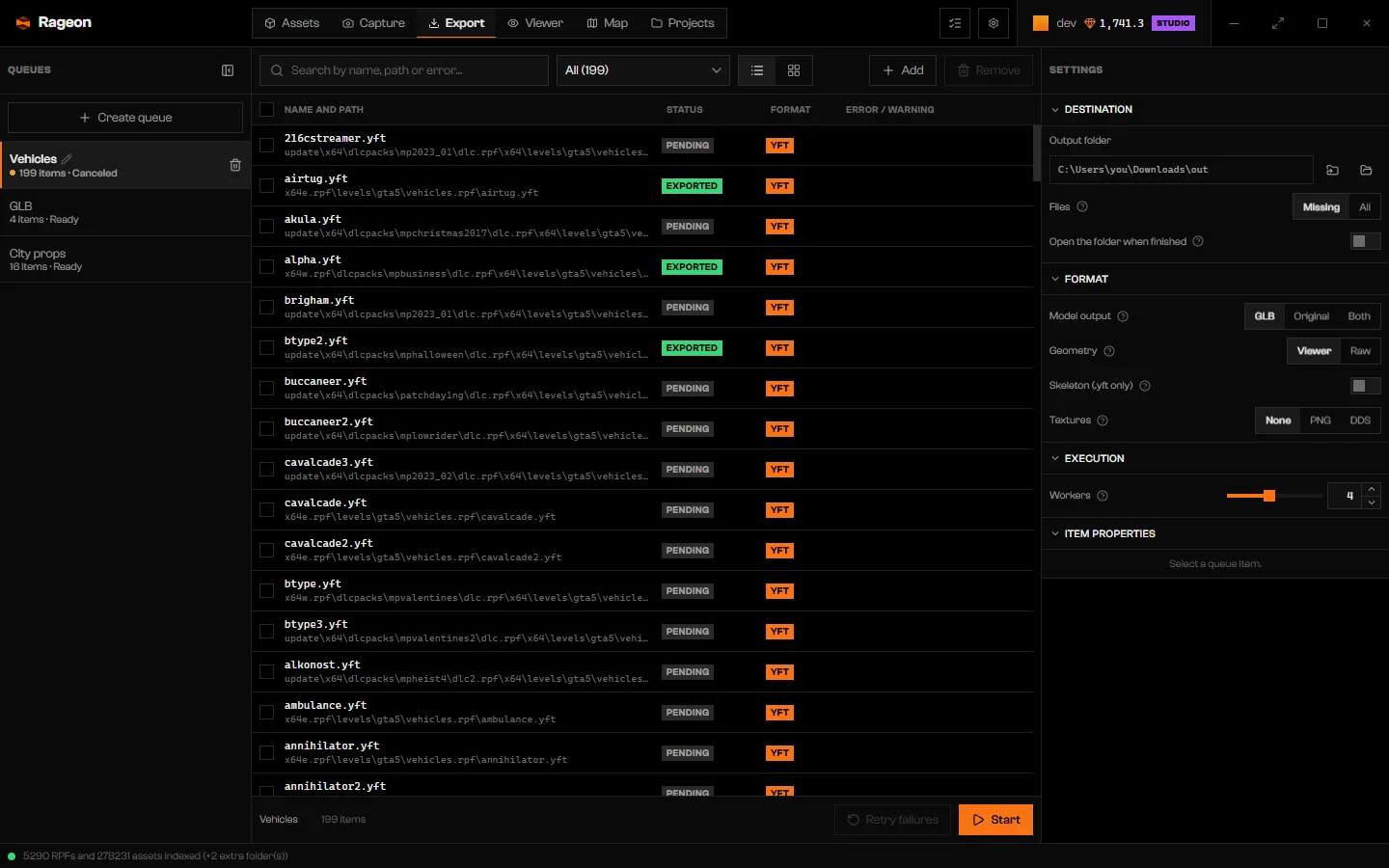

Export tab with a queue of pending items, the Queues column and the Settings panel

The Export tab with a queue of items.

​
Before you start

Index your game folder first. See First setup. To export interiors, the map index must also be ready (see Add items).

​
Create a queue

1

Click Create queue

A queue named New queue appears with its name open for editing. Type a name and press Enter.

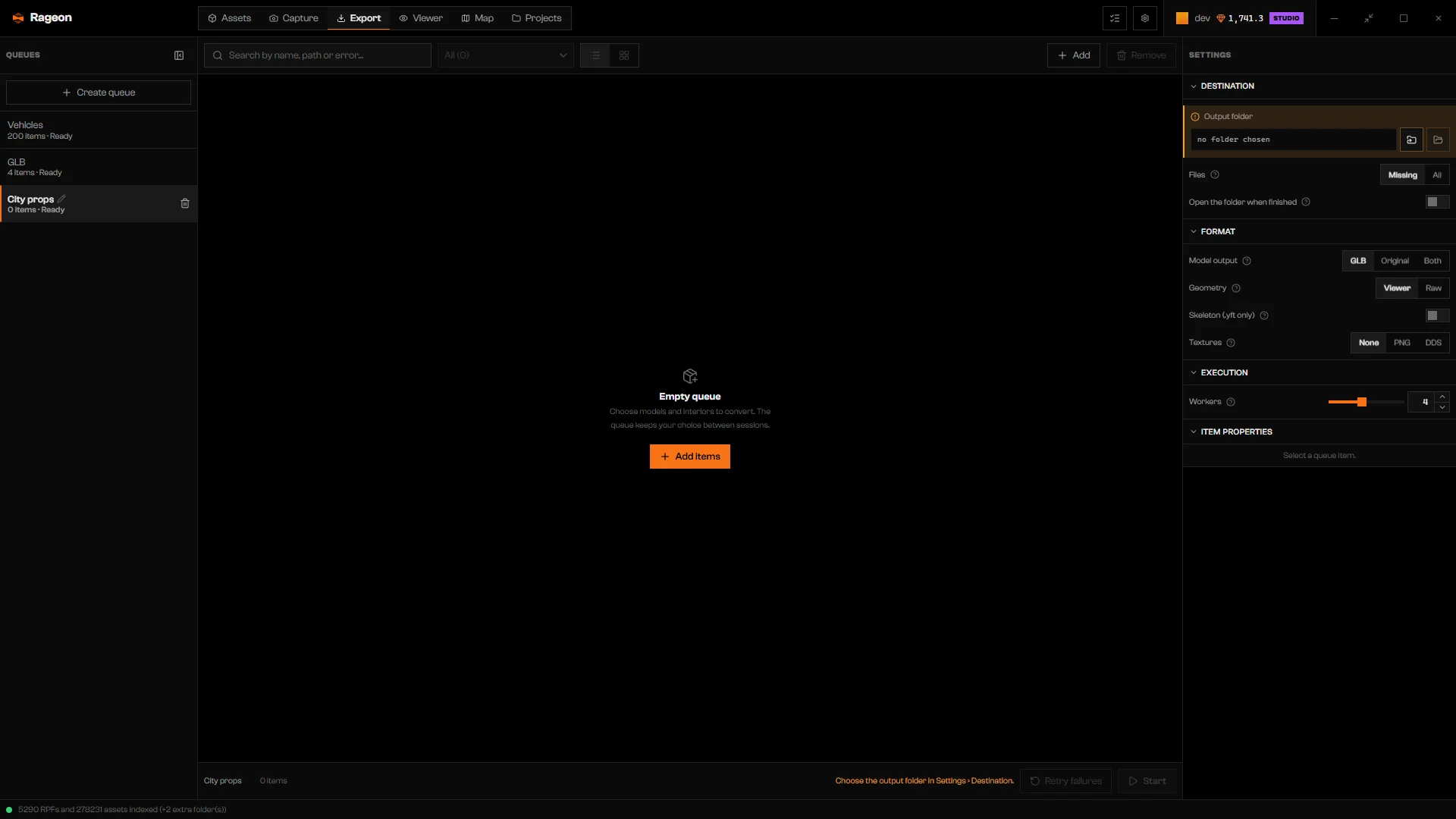

New queue with no items, the Add items button and the Settings panel

A newly created queue with no items.

2

Add items

Click Add items. See Add items.
3

Choose the output and start

Set the folder and format in Settings, then follow Run and results.
To rename a queue, click its pencil (Rename (F2)), double-click the name, or press F2. An empty name keeps the previous one.
Delete queue acts at once, with no confirmation. It does not delete files you already exported. Running queues cannot be renamed or deleted.
Queue names, items, folders, and options are kept between sessions. Status and errors are not: every item is Pending again when you reopen Rageon.

​
Find items

Search matches the name, the source path, and the error text. The Format column shows the type of the source file (YDR, YFT, YDD, YTYP), not the output format.

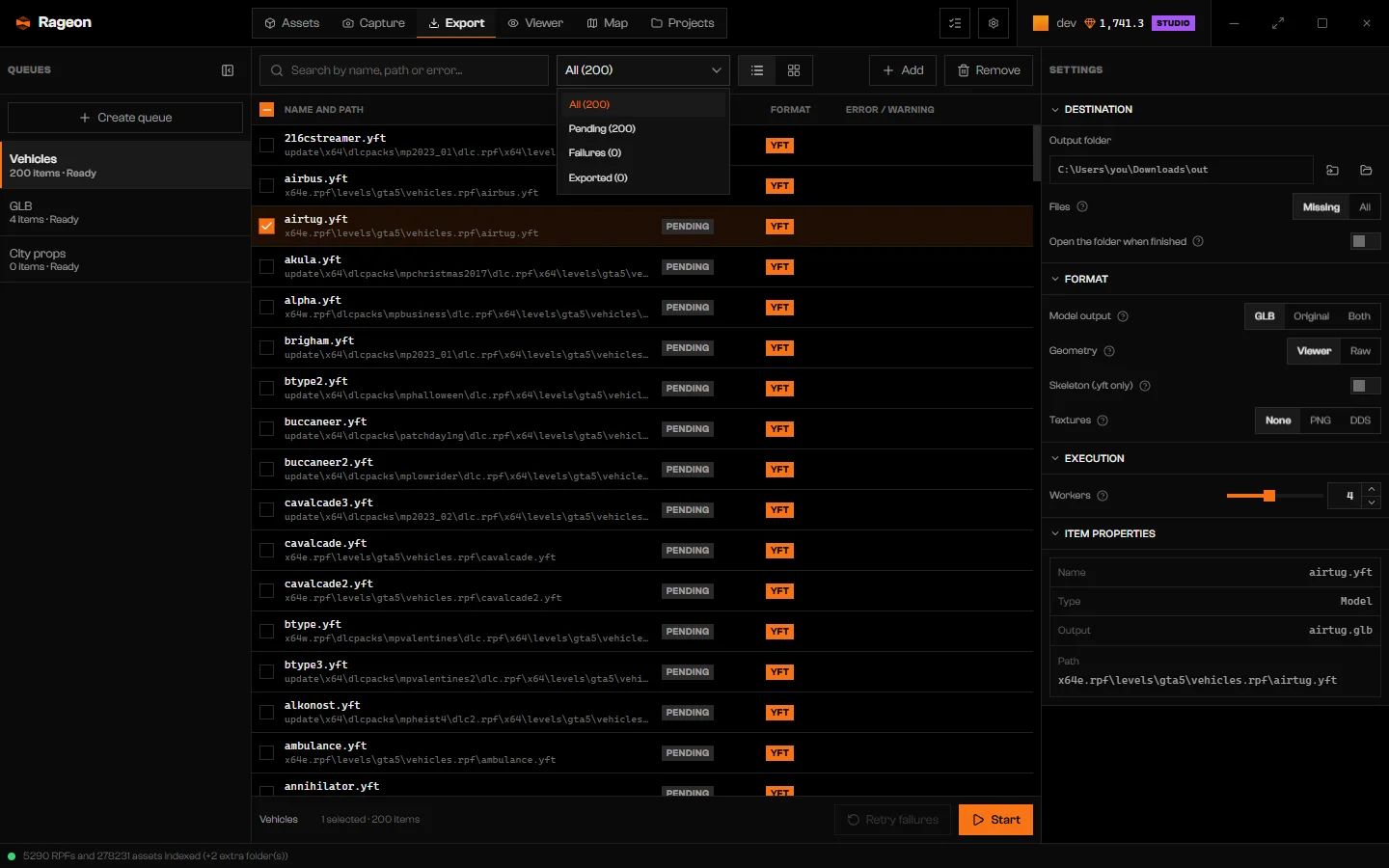

Status filter menu with All, Pending, Failures, and Exported

The status filter menu.

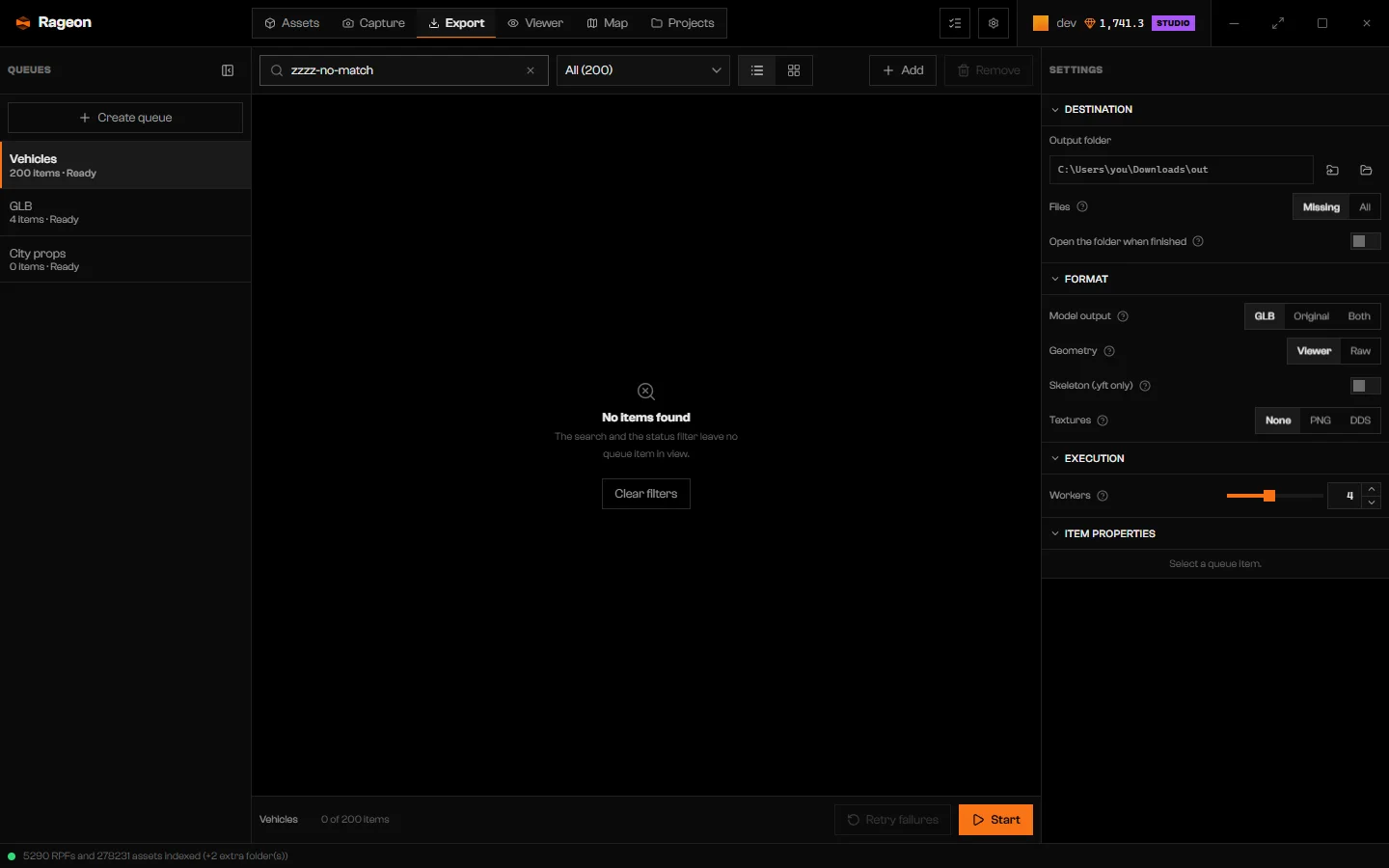

No items found message with the Clear filters button

A search with no results.

Click Clear filters to reset the search and filter.
Search and filters change only what you see. Start still runs every Pending and Failed item in the queue.
Grid shows previews and status badges. Items without a preview show an icon for their type.

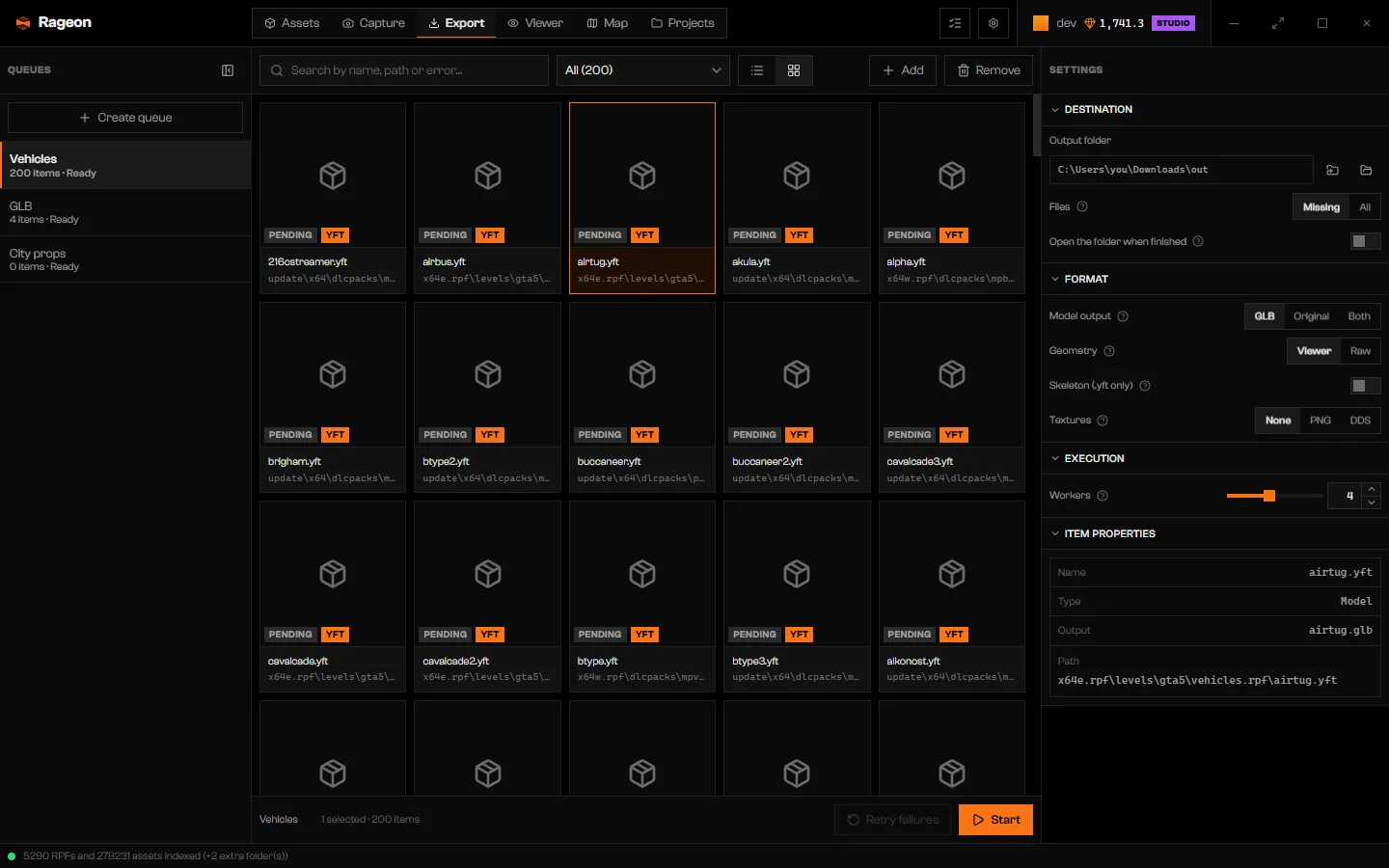

Grid of item cards with previews and status badges

Grid view.

​
Remove items

Select items and click Remove, or press Delete. Removing several items asks you to confirm.

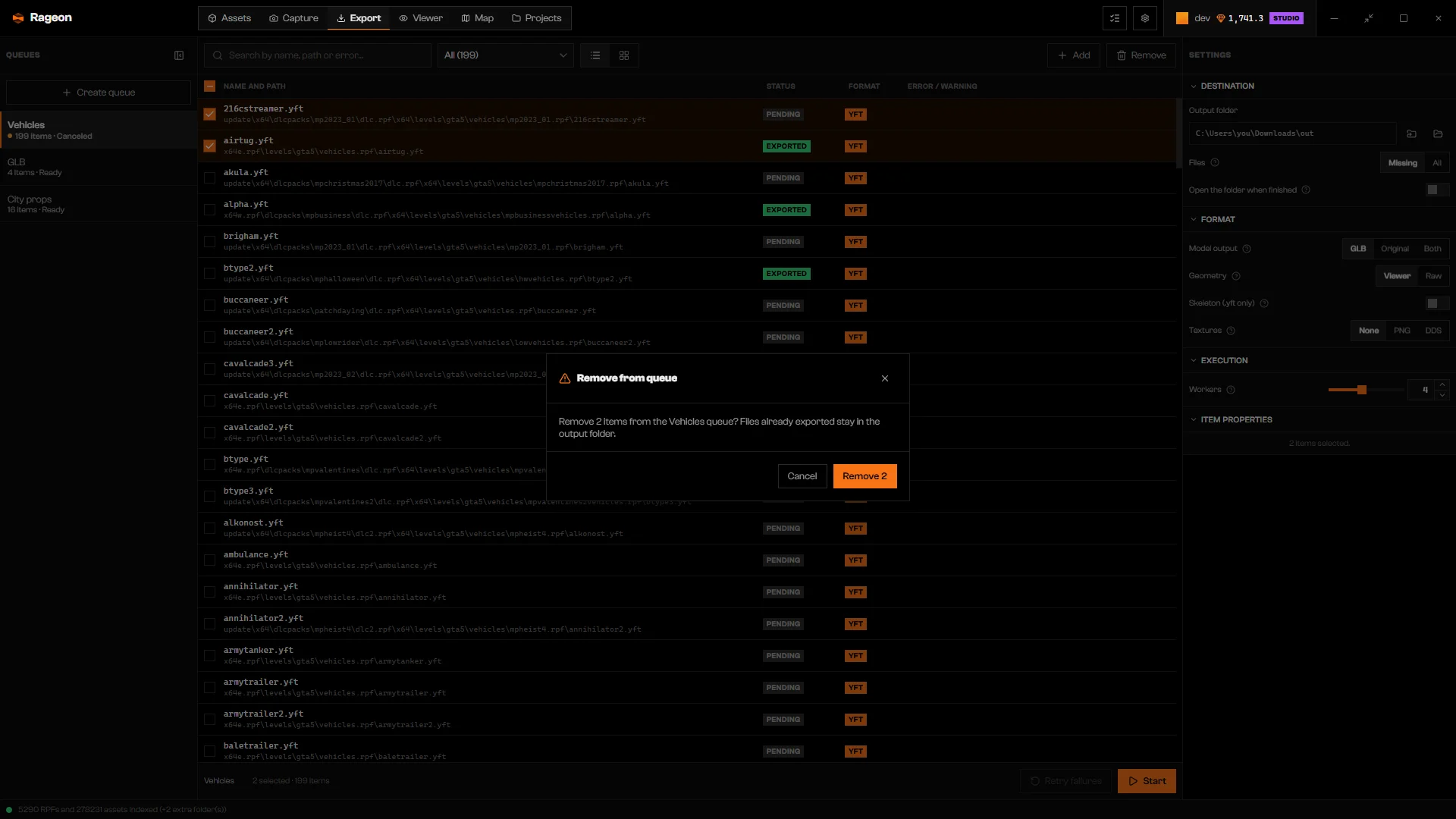

Remove from queue dialog with Cancel and Remove buttons

Confirmation when removing several items.

Files already exported stay in the output folder. Right-click an unselected item to select only that item; Clear selection in the same menu unchecks everything.
