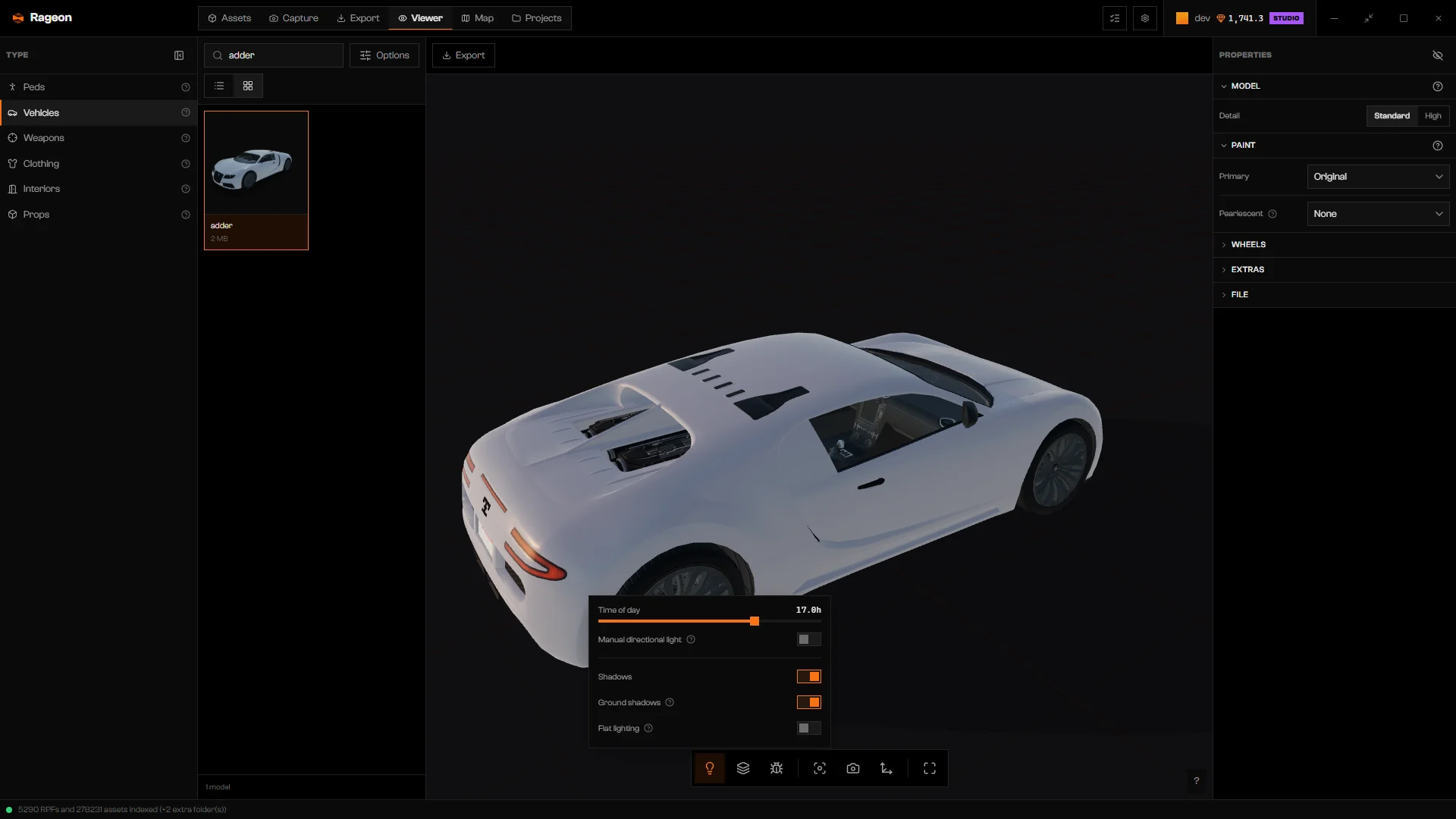

Open Lighting and move Time of day. Daylight and shadows follow the hour.
Time of day at 17.0 h.
2

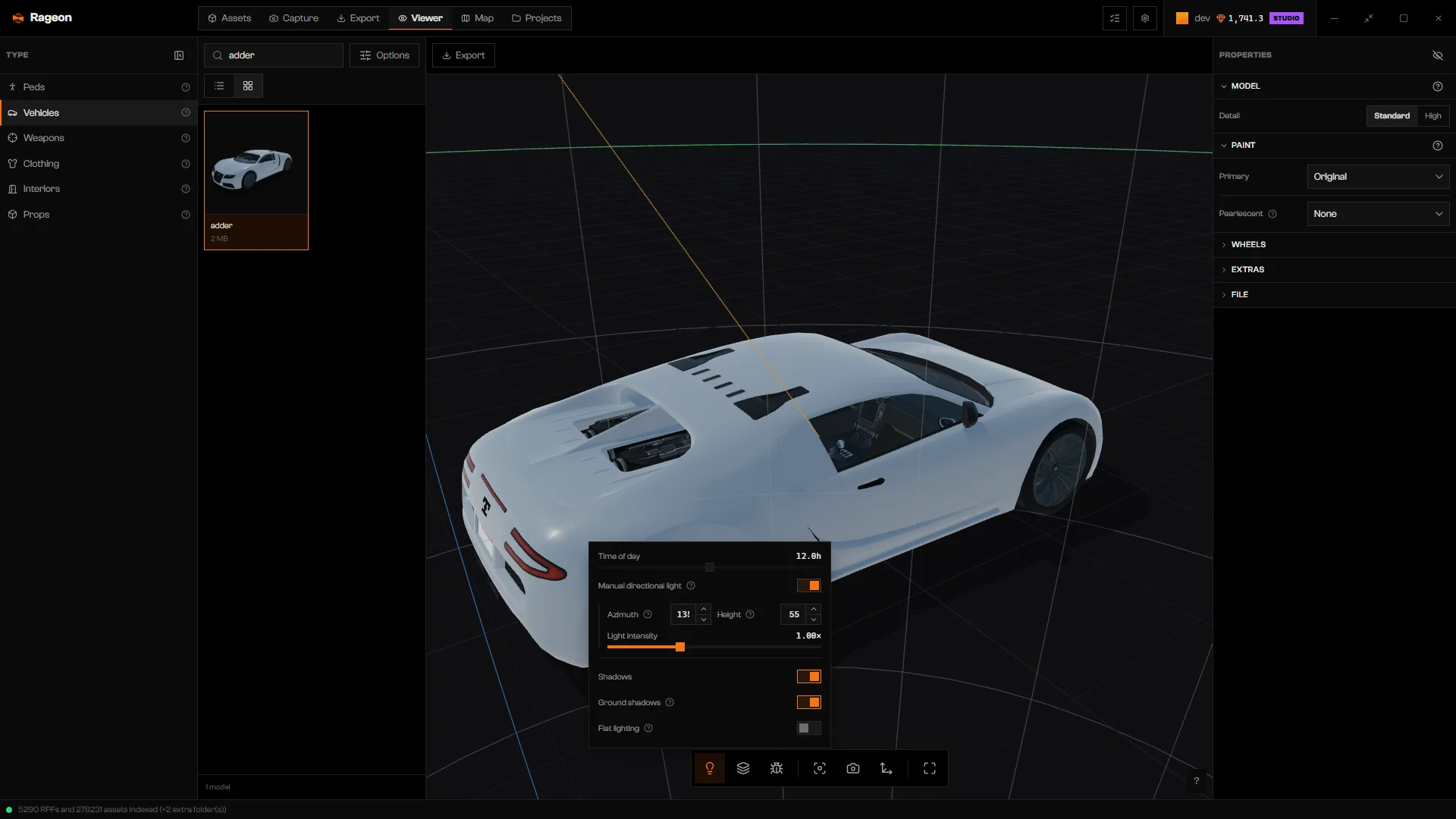

Place the sun yourself
Turn on Manual directional light to set Azimuth, Height, and Light intensity. Time of day is disabled while it is on. You can also drag the sun marker around the model.
Adjusts brightness to the framed model. Turn it off to compare models at the same brightness.
On
Sky background
Shows the game sky. Turns Transparent background off.
Off
Transparent background
Leaves the background clear in PNG and WebP images. Turns Sky background off.
Off
Background color
Solid backdrop, used when sky and transparency are off.
Dark
Geometry in this panel shows Triangles, Vertices, and Meshes for the loaded model. Click one to copy it. Debug → Wireframe shows mesh edges and also appears in captured images. Debug → Grid does not.
The model starts at a three-quarter angle. Click Reset camera (F) to return to it.
Action
Orbit camera
Free camera
Orbit
Drag with the left or right button
—
Look around
—
Right button + move
Pan
Middle button + drag
—
Move
—
WASD
Up, down
—
Space or E, Q
Faster
—
Hold Shift
Wheel
Zoom
Movement speed
Frame the model
F
F
Switch camera
C
C
Move the sun
Drag the sun marker. Hold Shift to rotate freely; otherwise it snaps to 15°.
—
F and C work when the stage is focused or the pointer is over it, outside capture mode, text fields, and dialogs. With a model loaded, the Reset camera (F) and Free camera (C) buttons also work in capture mode, and Free camera (C) exits it. Dragging the sun needs Manual directional light. Click ? for a reminder of the active controls.
The orbit and light help.

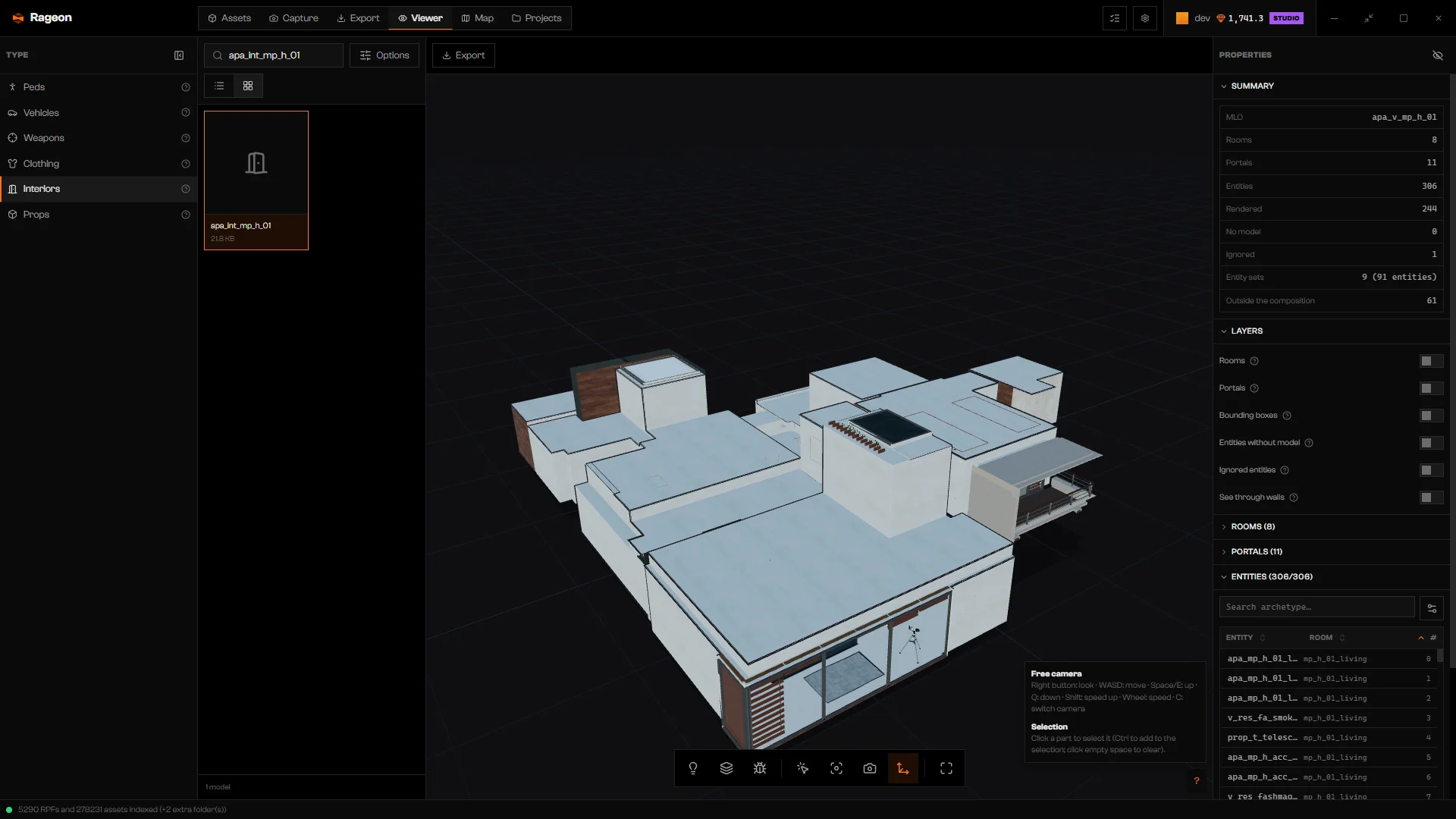

Free camera (C) lets you fly through a model, which is how you look around inside an MLO such as apa_int_mp_h_01.
Free camera inside apa_int_mp_h_01.
The Camera orientation gizmo snaps the view to Right (+X), Left (−X), Back (+Y), Front (−Y), Top (+Z), or Bottom (−Z) and keeps your distance. Click the active direction again for the opposite view.
