Capture mode saves an image of the model exactly as the frame shows it: current outfit, paint, or components, plus your lighting and background. A paused animation pose is kept.

​
Save an image

1

Set up the model

Dress or configure the model first. For an animated ped, pause on the pose you want (Animations and bones).
2

Click Capture mode

The stage shows the image frame and Properties becomes Capture. Playback pauses. The grid, bone overlays, and interior layers are hidden; Wireframe stays if it is on.

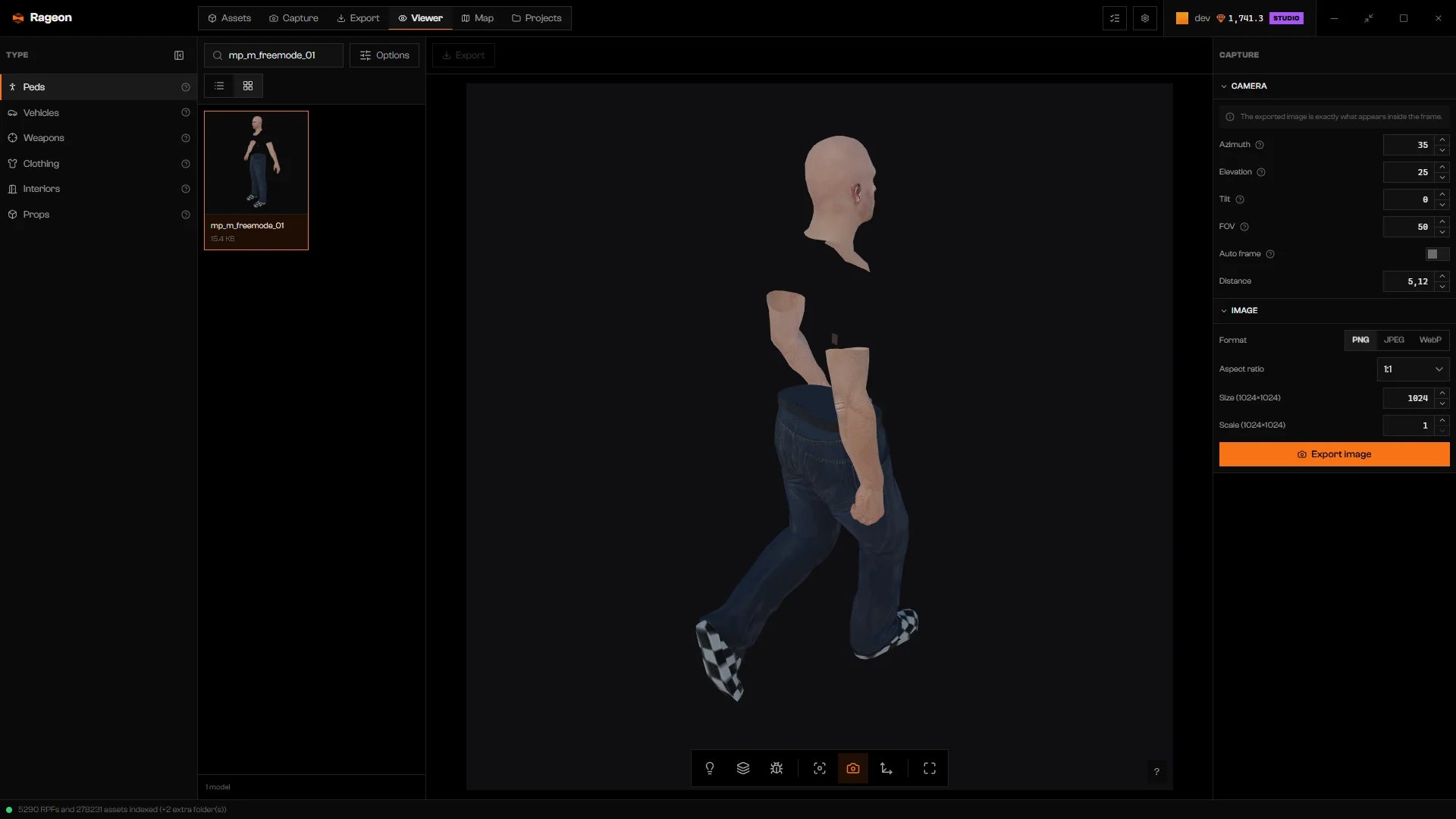

Capture mode framing the paused walking ped

Capture mode on the paused ped.

3

Compose the shot

Capture mode keeps your current angle and distance. Turn on Auto frame to fit the whole model, then set Margin around; with it off, set Distance yourself. Adjust Elevation, Tilt, and FOV (low values flatten perspective).

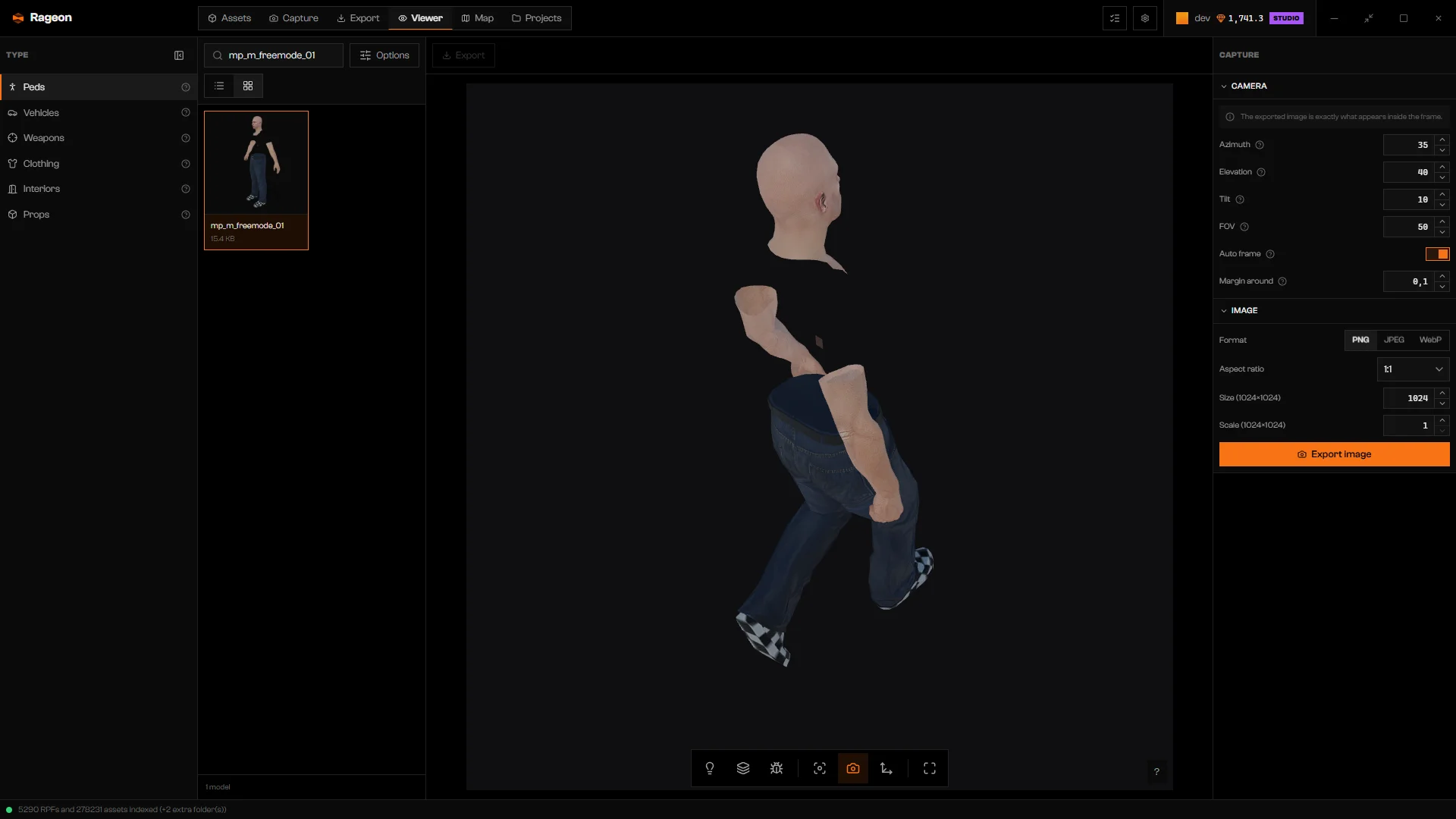

Capture panel with Elevation 40, Tilt 10, and Auto frame on

Elevation 40, Tilt 10, Auto frame on.

4

Choose the output

Pick a Format, Aspect ratio, Size, and Scale. Size sets the longest edge and Scale multiplies the result. The label shows the final resolution.
5

Click Export image

Choose a name and folder. Saved to … appears when the file is written.
Click Exit capture mode to return to the editor.

​
Options

Reset the camera in capture mode to return the numbers to a three-quarter view.

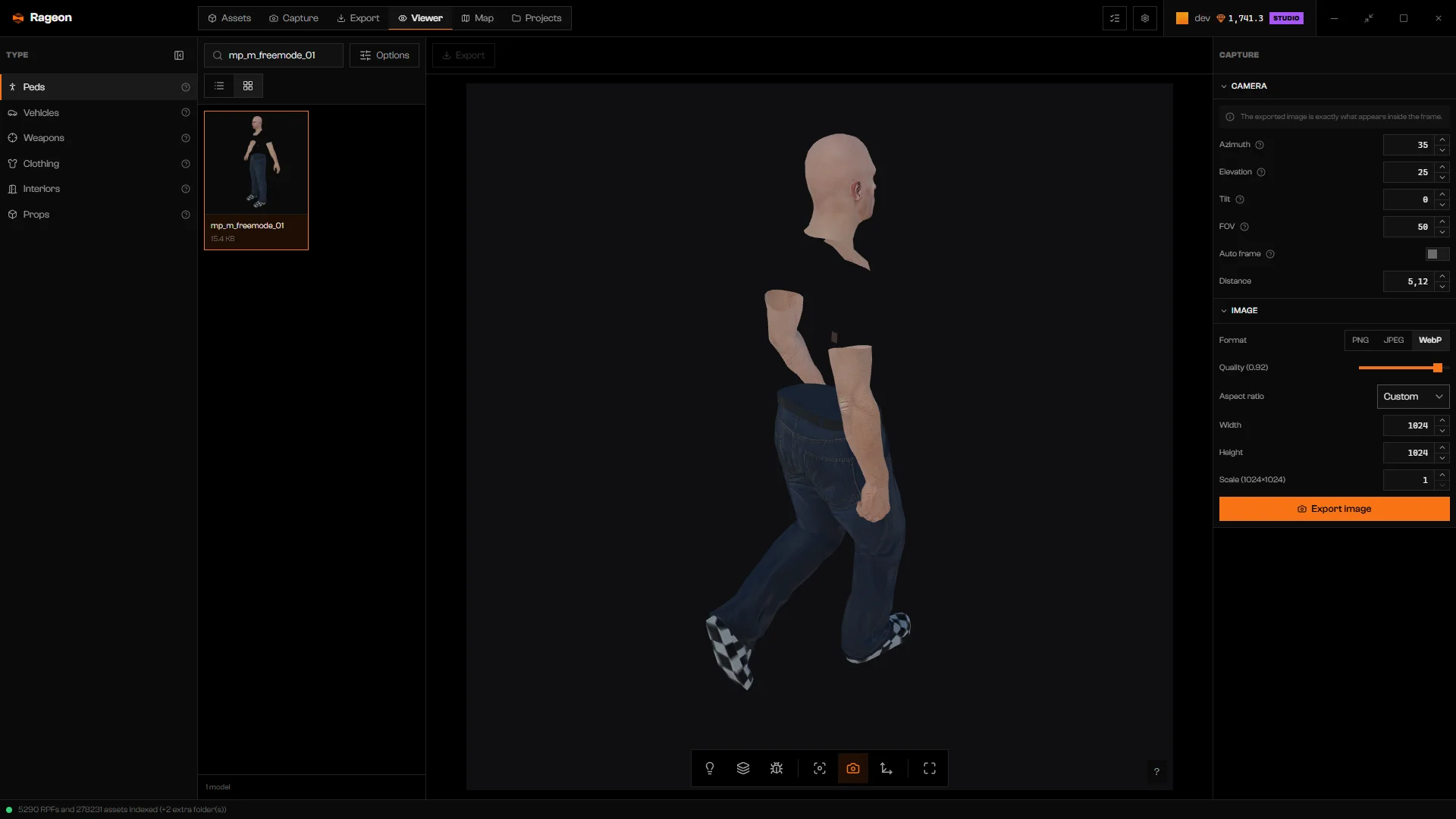

Capture panel with WebP, the quality slider, and Custom aspect ratio with Width and Height

WebP at a custom size.

The final width × final height, after Scale, cannot exceed 16,777,216 pixels. Export image is disabled above this limit.

​
Limits and plans

A saved image counts against your weekly capture allowance, the same one the Capture tab uses. Cancelling the save dialog uses none. See rageon.dev/pricing for what each plan includes. Saving can still be refused after you pick a folder.

​
Troubleshooting

Change Format to PNG or WebP, or turn off Transparent background.
Lower Size, Width, Height, or Scale. The numbers in the message may not include Scale, so check the label next to it.
Sign in to your Rageon account, then export again.
Sign out, sign back in, and export again.
You reached your weekly capture allowance. It renews on the date shown. See rageon.dev/pricing.
Your weekly capture allowance cannot cover this export. Check your plan at rageon.dev/pricing.
Wait the number of seconds shown, then try again.
