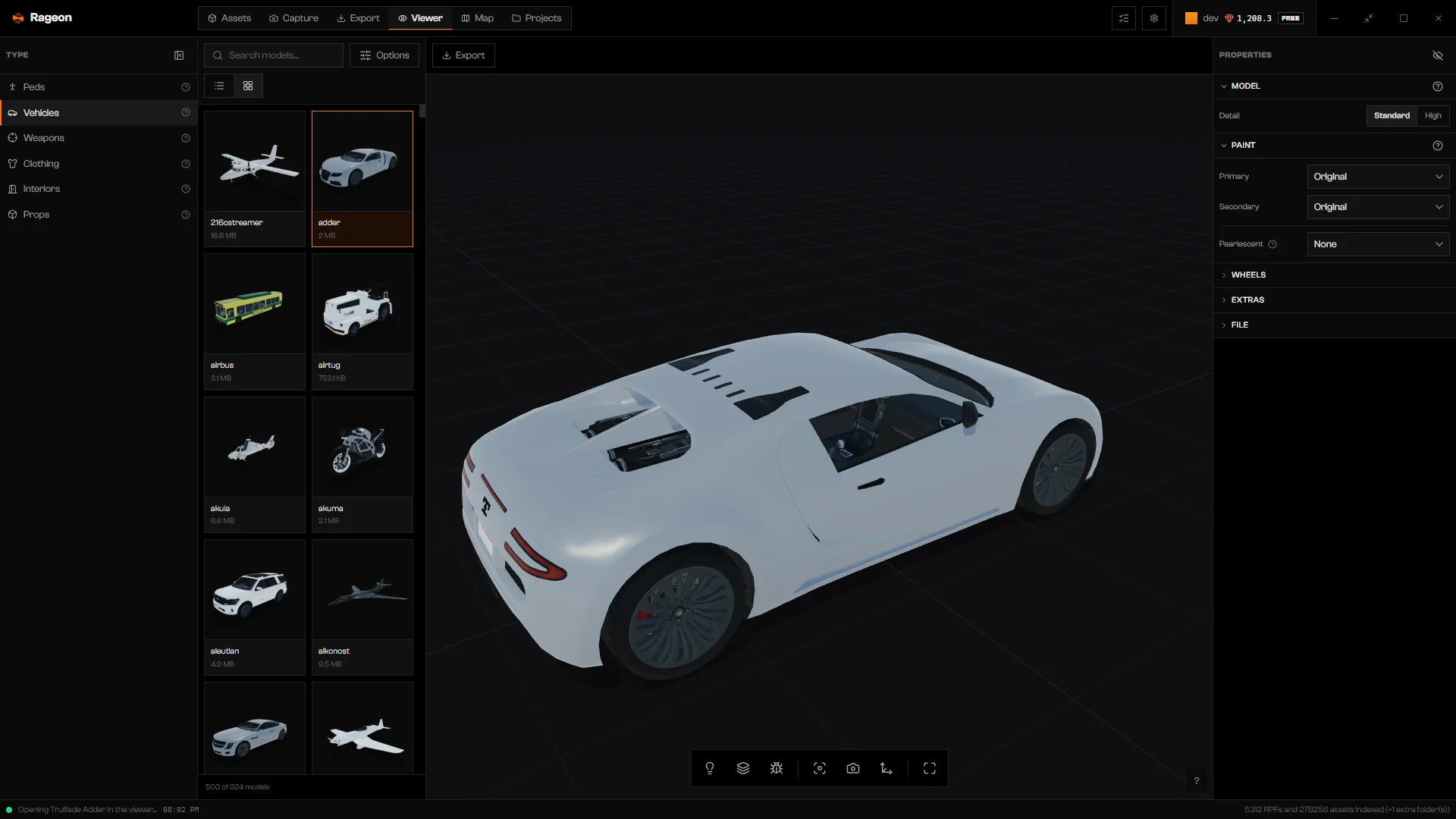

Send an asset to the Viewer to look at it, or to Projects to edit its textures.

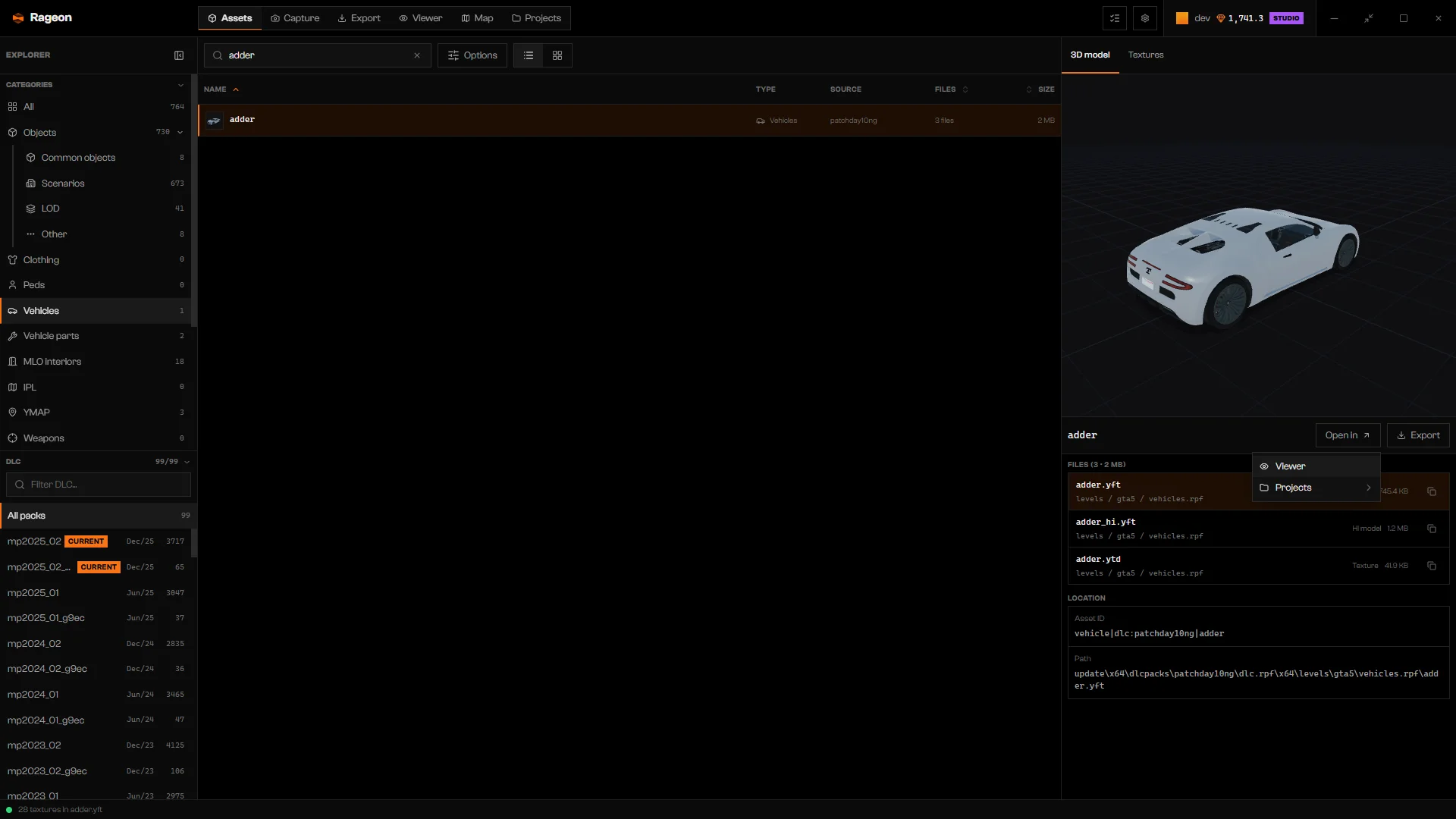

Open in in the inspector moves the open asset to another tab. Viewer is offered for a selected file with a 3D preview. Projects tasks depend on the asset’s primary file and category.
Choose Open in › Projects, then a task. The tasks depend on the asset.

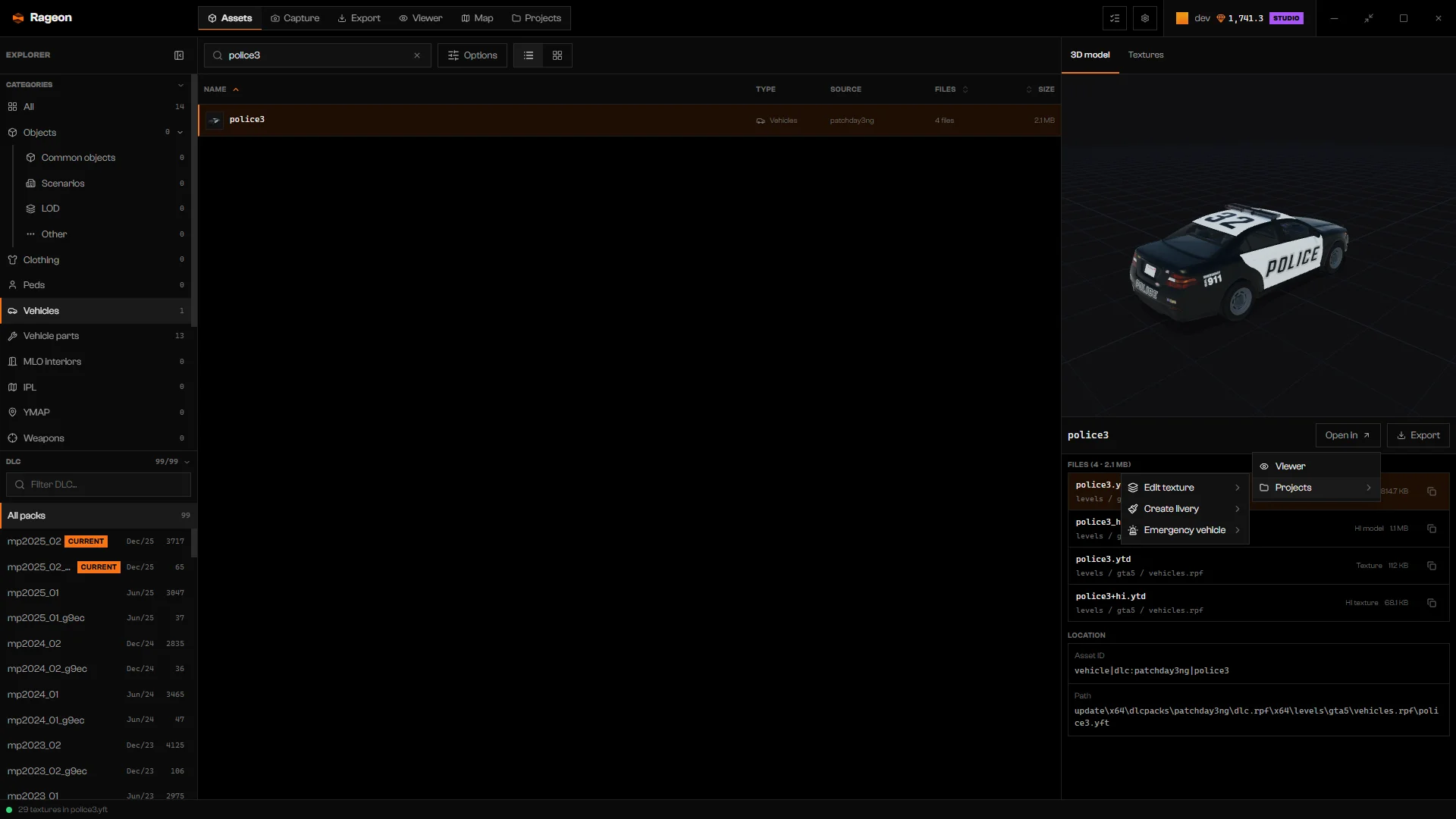

Project tasks for police3.
2
Pick a project
Choose an open project, a recent one, or New project. A new project is named after the asset. The app switches to Projects. If a running edit would be interrupted, Rageon asks you to confirm first.
Task
Available for
Edit texture
.yft, .ydr, .ydd, and standalone .ytd files
Create livery
Vehicles such as adder and police3
Emergency vehicle
Vehicles whose primary file is a .yft

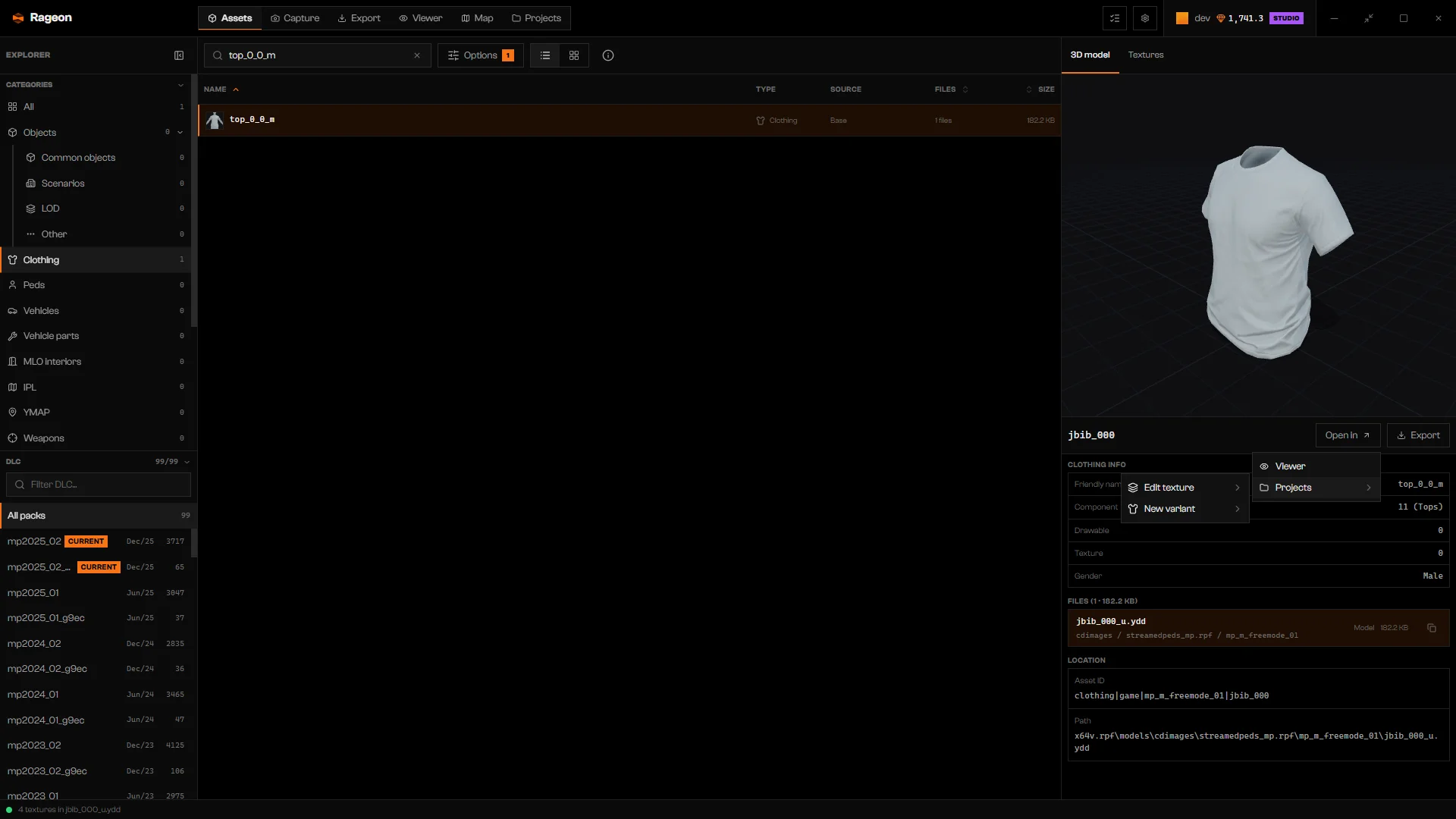

New variant
Clothing

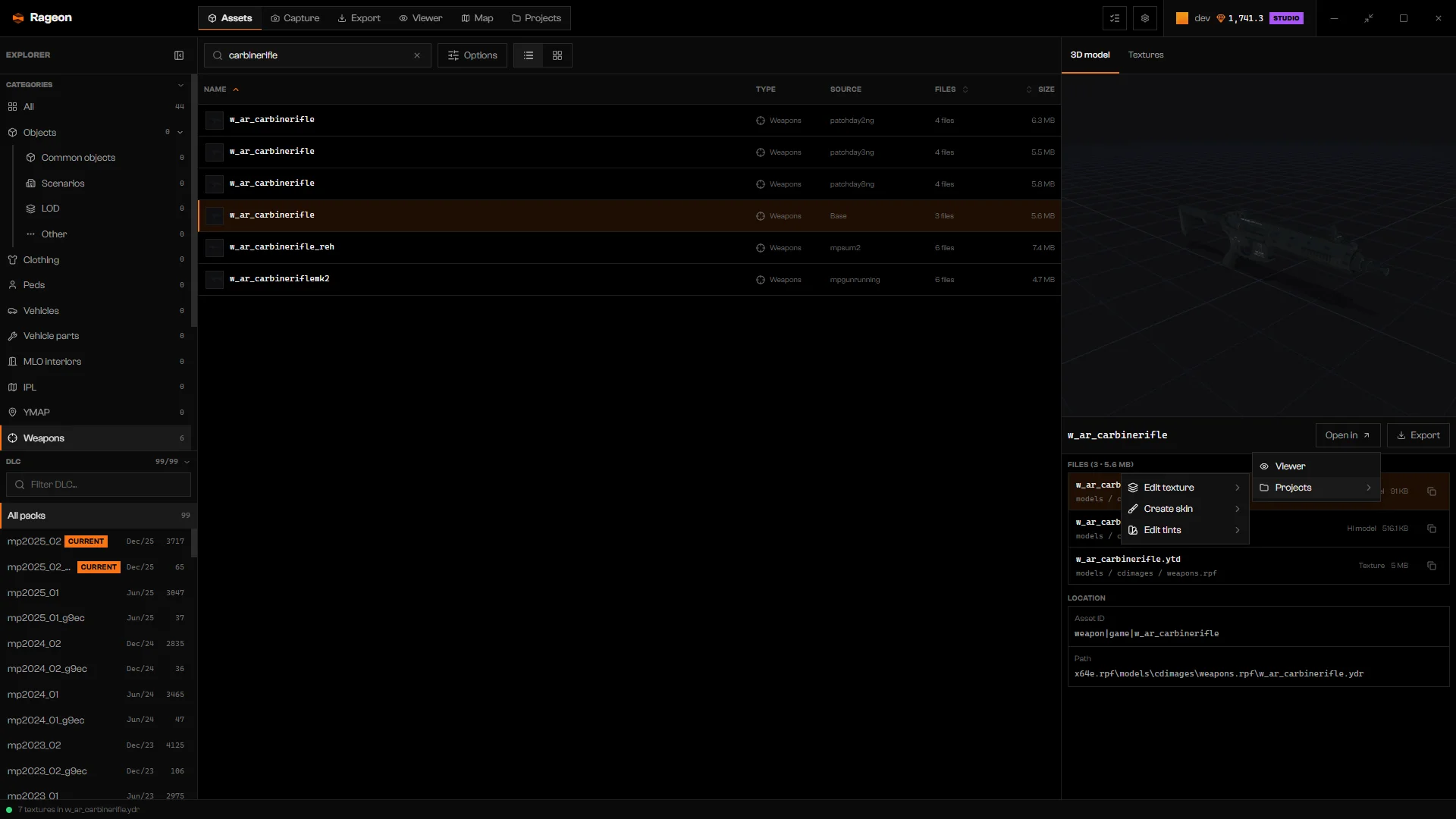

Create skin, Edit tints
Weapons
Emergency vehicle creates a new emergency vehicle from the game vehicle. If its name is already used, Rageon adds a number. A project that has never been saved must be saved before it can receive the vehicle.
To edit a single texture, open it in Textures (Textures), then use Open in › Projects › Edit texture and choose a project. The New edit dialog opens for the asset and selects this texture if it is available for editing. This menu lists only Edit texture.Everything after the handoff happens in Projects.
