Rageon keeps converted models, catalogs, the prepared Map, and AI results on disk so the next opening is faster. The Cache tab of Settings sets a limit for part of it, shows everything on disk, and clears what you no longer need.

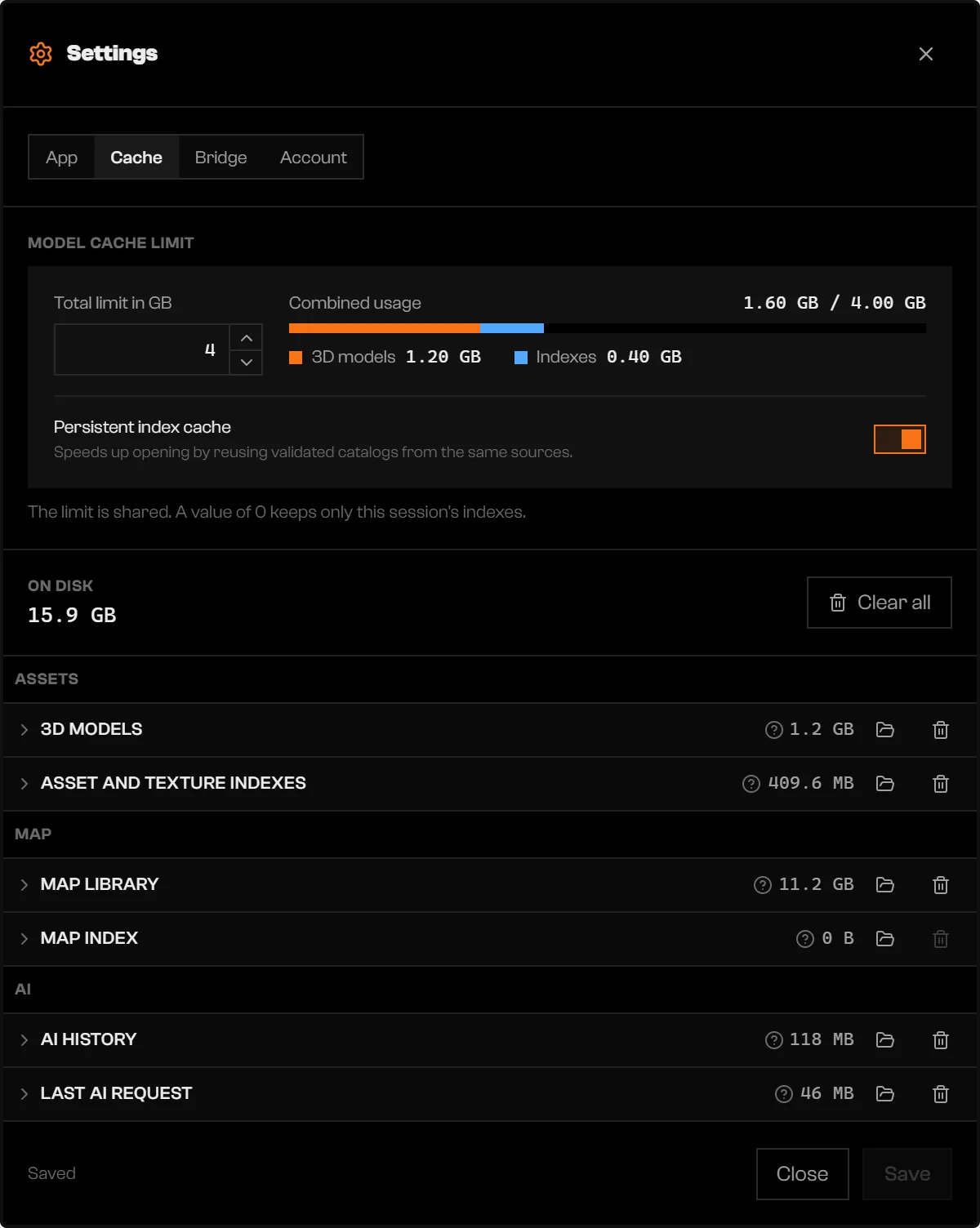

Settings Cache tab with the total limit, a usage bar, the Persistent index cache switch, and areas grouped under Assets, Map, and AI

The Cache tab: limit, usage bar, and the areas on disk.

​
Set the limit

1

Open Settings › Cache

Total limit in GB caps the 3D model cache and the indexes together, from 0 to 20 GB. Combined usage shows the current use against the limit, and the bar splits it into 3D models (orange) and Indexes (blue).
2

Change the limit or the index switch

Persistent index cache reuses catalogs already built from the same sources, so the app opens faster. With a limit of 0 the switch is disabled and only this session’s indexes are kept.
3

Click Save

The footer goes from Pending to Saved.

​
See and clear what is on disk

On disk adds up every area below it. Each area shows its size, a button to open its folder, and Clear. Expand an area to list its items. In use marks what the workspace you have open is using. Remove deletes one item.

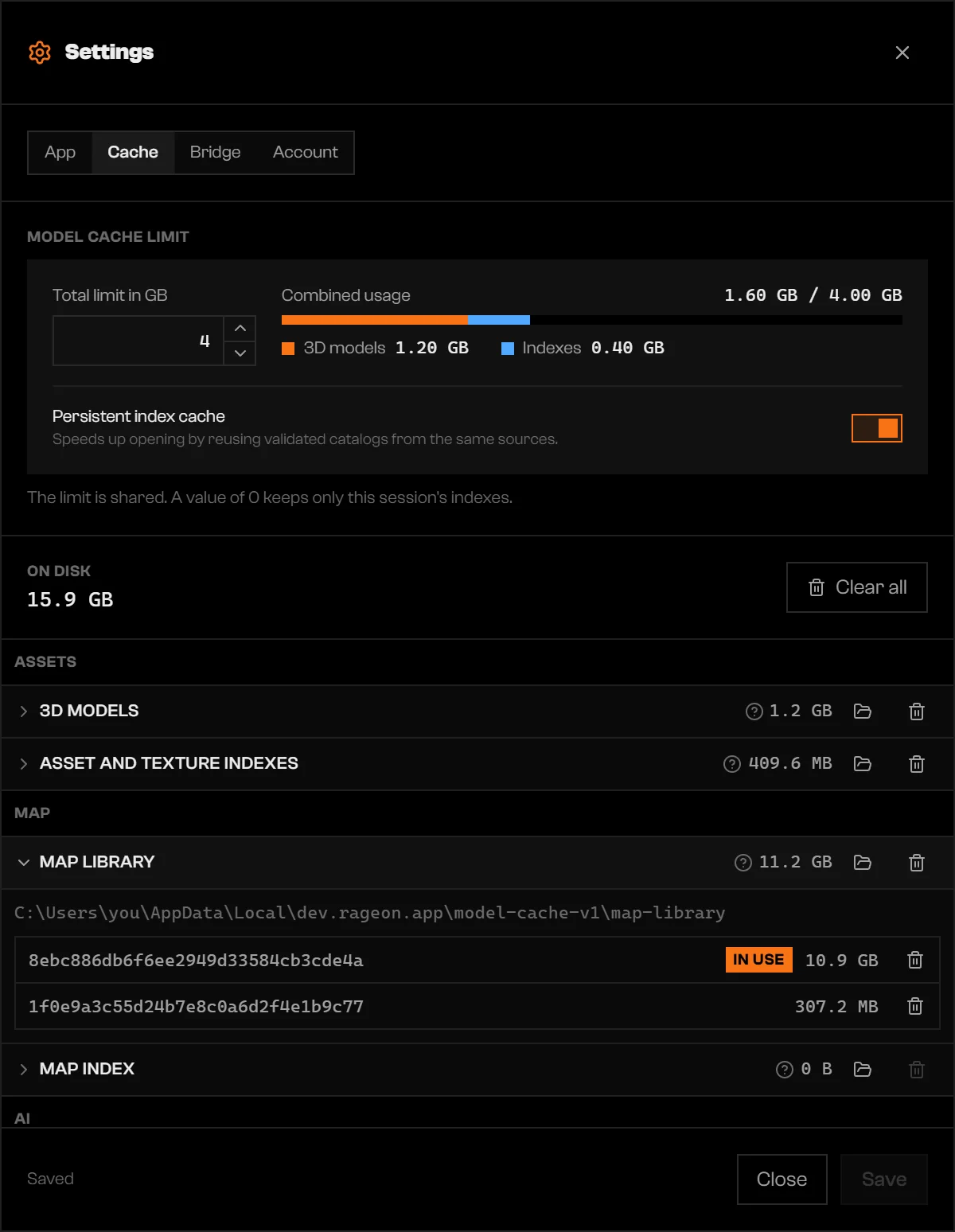

Map library area expanded with a list of items and an In use badge

The Map library expanded, with the workspace in use marked.

1

Click Clear on an area, or Remove on an item

A confirmation says what you lose.

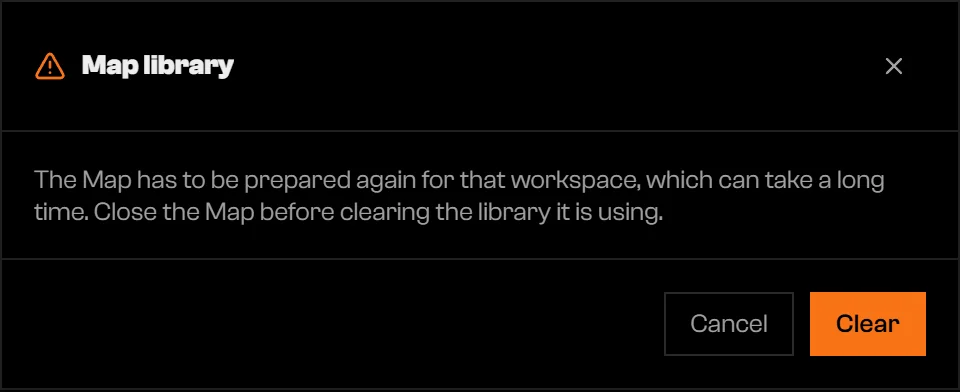

Map library confirmation with Cancel and Clear buttons

Confirmation before clearing the Map library.

2

Confirm, or click Cancel

Cancel deletes nothing.
Clear all empties every area after one confirmation. An area that is in use is skipped and reported with Not cleared: ….

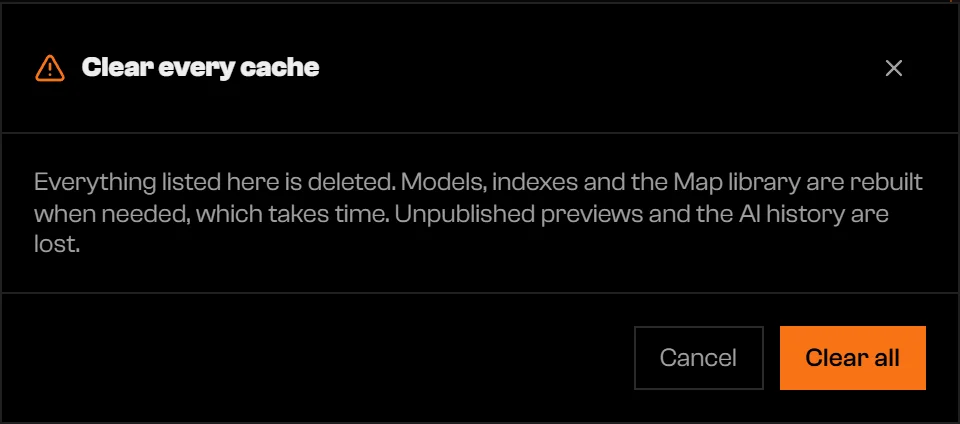

Clear every cache confirmation with Cancel and Clear all buttons

The Clear all confirmation, titled Clear every cache.

Clear all also deletes your AI history. Rebuilding the Map library can take a long time, so clear it only when you need the disk space or want it prepared again.

​
Troubleshooting

The area is in use or could not be removed. Close the Map, wait for any capture or generation to finish, then try again.
Rageon could not save the limit. Try again, or reopen the app.
